The Canvalodge Military Tent 5m x 5m is a rugged, general-purpose canvas shelter designed to accommodate 10-20 people comfortably. Built as a traditional peg-and-pole tent, it is supported by durable poles and a reliable rope-tension system for maximum stability in the field. This tent features a single roof with two detachable wall panels, allowing flexible configuration depending on the environment.

A loose groundsheet can also be supplied when required. Its straightforward design makes it a versatile, cost-effective solution for military personnel accommodation, storage, disaster-relief operations or any application where dependable shelter is essential. Engineered to be quick to pitch, easy to transport and capable of withstanding harsh weather conditions, the Canvalodge 5m x 5m Military Tent provides excellent space, airflow and protection. Built for long-term performance in Africa’s toughest outdoor environments, this tent offers reliability, strength and extended service life you can depend on.

Sleeping Capacity: 10–20 people (depending on bed type, stretchers, or layout)

Length: 10 m

Width: 5 m

Footprint: 50 m²

Apex Height: 3.6 m

Side Wall Height: 1.8 m

Weight: ±87 kg

Carry Bags: Due to the substantial size of the tent, a single carry bag is not possible.

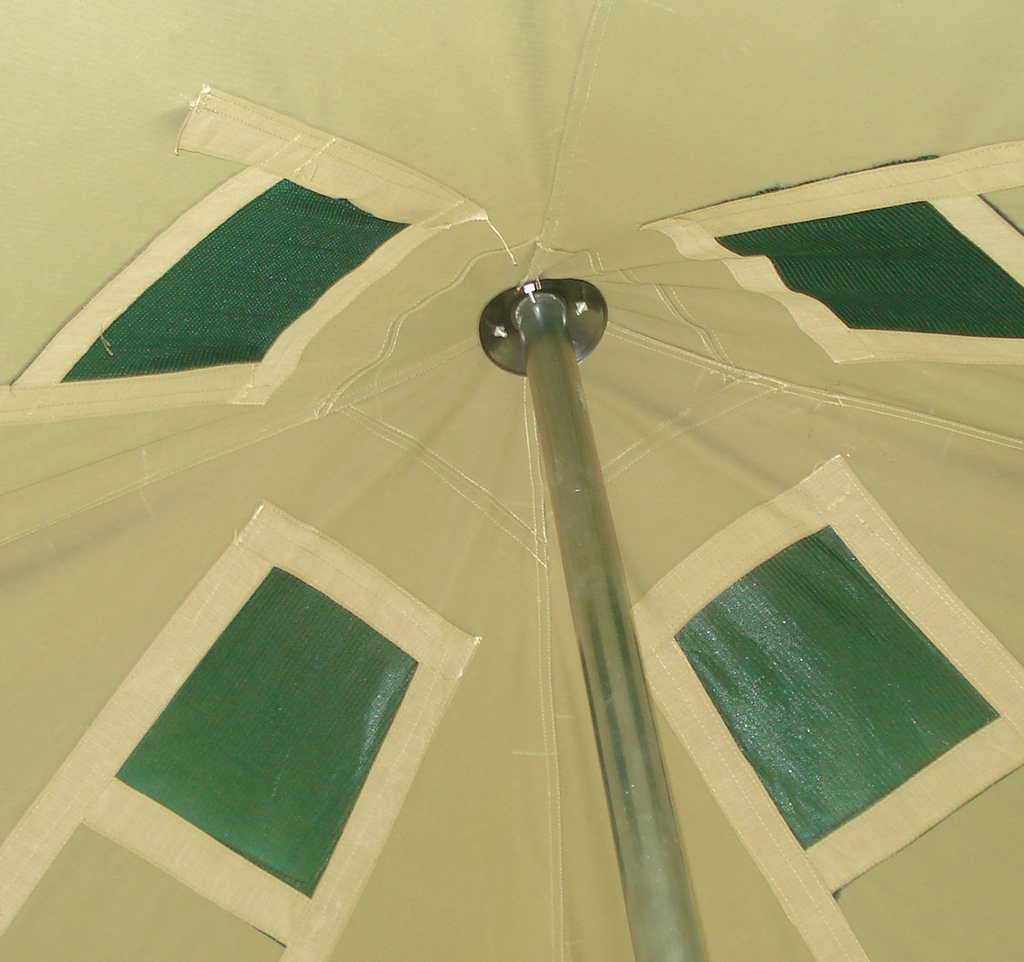

Poles: 2 electroplated 50mm x 1.6mm centre poles; 18 side-wall poles (25mm x 0.9mm)

Bags: 3 polyethylene choke bags

Pegs: 30 side-wall pegs; 22 spring-steel anchor pegs (6mm)

Ropes: 22 braided anchor ropes (7mm with rope sliders)

Optional Military-Spec Upgrades: Swedged wall poles, steel cable/chain anchor ropes and 900mm x 8mm spring-steel pegs

Only SABS-approved 320–500gsm ripstop canvas and materials

Side walls with built-in mosquito netting and PVC mudguards

Optional mosquito netting on air vents

Optional extended length to 12m or more (with 3 centre poles)

Optional military-spec accessories

Optional double flysheet (shade netting, canvas or PVC)

Optional two 5m x 5m PVC groundsheets (550–710gsm)
